OPEN-ENDED POLYURETHANE AND RUBBER SYNCHRONOUS BELT
A comprehensive range of open-ended belt constructions which can easily be cut to the required length. Long-length open-end synchronous belts are especially suited for linear movement, positioning and conveyor applications. Available in Poly Chain® GT™ Carbon™, PowerGrip™ GT2™, PowerGrip HTD™ and PowerGrip Timing constructions.
CONSTRUCTION + SPECIFICATIONS
POLY CHAIN GT CARBON
- Durable polyurethane construction resists chemicals, oil, pollutants, and abrasion.
- Robust carbon tensile cord combines minimal stretch with extraordinary strength and load carrying capacity.
- Nylon tooth facing reduces friction and eliminates the need for lubrication.
| Item Available List Size |
| Gates PolyChain Carbon | |||||||

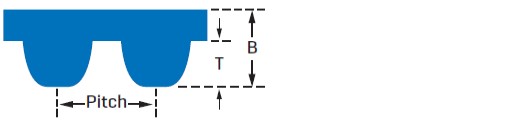

| Sectional & Nominal Dimensions | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | ||
| 8MGT | 8 | 3.4 | 5.9 | 30 | 12, | 21, | 36 |
| 14MGT | 14 | 6 | 10.2 | 30 | 20, | 37 | |
POWERGRIP TIMING / POWERGRIP GT2 / POWERGRIP HTD
- Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation.
- Neoprene body provides protection against grime, grease, oil, and moisture.
- Nylon tooth facing on both tooth surfaces of the belt provides a durable wear surface for long service life.
FEATURES + BENEFITS
- High positioning accuracy, making the belt ideally suited for applications with repetitive movements.
- Length stability due to the use of high modulus tensile members.
- Easy to attach with clamping fixtures.
- Maintenance-free, clean solution for roller chain drive conversion.
- No lubrication required.
- No re-tensioning required.
- Operating temperature range: -54°C/-65°F to +85°C/+185°F (Poly Chain) and -30°C/-22°F to +100°C/+212°F (PowerGrip).
| Item Available List Size |
| PowerGrip GT (Fiberglass Cord) | ||||||||||

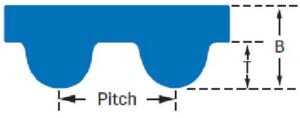

| Sectional & Nominal Dimensions | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | |||||
| 2MR | 2 | 0.71 | 1.52 | 15.24 | 4, | 6, | 9 | |||
| 3MR | 3 | 1.12 | 2.41 | 30 | 6, | 9, | 15 | |||
| 5MR | 5 | 1.92 | 3.81 | 30 | 6, | 10, | 15, | 25 | ||
| 8MR | 8 | 3.34 | 5.6 | 30 | 10, | 15, | 20, | 30, | 50, | 85 |
| PowerGrip GT (Steel Cord) | |||||||||
| Sectional & Nominal Dimensions | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | ||||
| 5MR | 5 | 1.92 | 3.81 | 30 | 6, | 10, | 15, | 25 | |
| 8MR | 8 | 3.34 | 5.6 | 30 | 10, | 15, | 20, | 30, | 50 |
| PowerGrip HTD (Fiberglass Cord) | ||||||||||

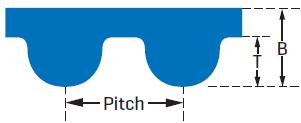

| Sectional & Nominal Dimensions | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | |||||
| 3M | 3 | 1.1 | 2.4 | 30 | 6, | 9, | 15 | |||
| 5M | 5 | 2.1 | 3.8 | 30 | 6, | 10, | 15, | 25 | ||
| 8M | 8 | 3.4 | 6 | 30 | 10, | 15, | 20, | 30, | 50, | 85 |
| 14M | 14 | 6 | 10 | 30 | 25, | 40, | 55, | 85, | 115 | |
| PowerGrip HTD (Steel Cord) | |||||||||||
| Sectional & Nominal Dimensions | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | ||||||
| 5M | 5 | 2.1 | 3.8 | 30 | 6, | 10, | 15, | 25 | |||
| 8M | 8 | 3.4 | 6 | 30 | 10, | 15, | 20, | 30, | 50, | 85 | |
| 14M | 14 | 6 | 10 | 30 | 25, | 40, | 55, | 85, | 115 | ||
| PowerGrip Timing (Fiberglass Cord) | |||||||||||

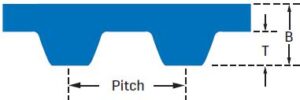

| Sectional & Nominal Dimensions | Pitch (Inch) | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | |||||
| MXL | 2/25 | 2.032 | 0.51 | 1.14 | 15.24 | 025, | 037, | 50 | |||
| XL | 1/5 | 5.08 | 1.27 | 2.3 | 30 | 025, | 031, | 037, | 50 | ||
| L | 3/8 | 9.525 | 1.91 | 3.6 | 30 | 037, | 050, | 075, | 100 | ||
| H | 1/2 | 12.7 | 2.29 | 4.3 | 30 | 050, | 075, | 100, | 150, | 200, | 300 |
| PowerGrip Timing (Steel Cord) | |||||||||||
| Sectional & Nominal Dimensions | Pitch (Inch) | Pitch (mm) | T (mm) | B (mm) | Length on Roll (Meter) | Width (mm) | |||||
| H | 1/2 | 12.7 | 2.29 | 4.3 | 30 | 050, | 075, | 100, | 150, | 200, | 300 |
